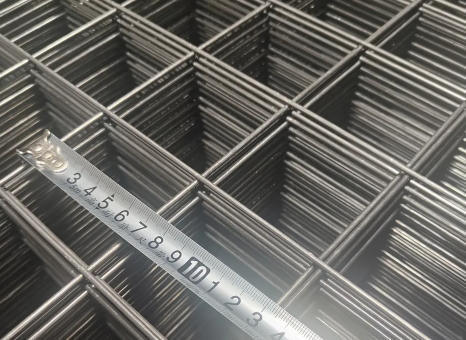

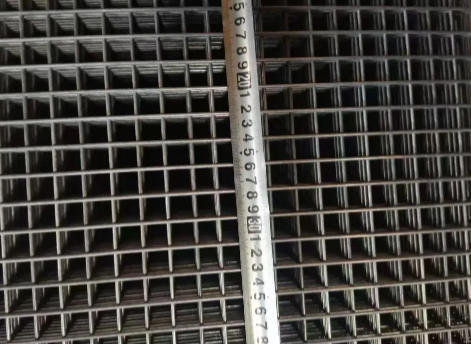

Durable PVC Coated Galvanized Welded Wire Mesh for Building Construction

Construction welded mesh is a durable reinforcing material widely used in buildings, bridges, highways, tunnels, and foundations. Available in cold rolled, hot rolled, galvanized, epoxy coated, stainless steel, and rebar mesh, it offers crack resistance, corrosion protection, quick installation, and cost efficiency, providing reliable reinforcement for various projects.

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2. Special size available at request

High Strength & Durability

Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.

Improved Construction Efficiency

Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.

Crack Resistance

Enhances tensile strength of concrete and effectively prevents cracking under load.

Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.



Product Characters of welded wire mesh :

1 . Excellent heat resistant and high intensity .

2 . High strength and strong integration .

3 . Flat and smooth surface combined with firm structure .

4 . Perfect Anti - Rust Property .

5 . Stay Holistiv even cut into fragmented parts .

6 . Long Using Life

7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.









Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Our advantage:Except the common size ,we also can make bigger wire diameter and small mesh size,for example:2.9mm wire diameter with 1inch mesh size,3mm wire diameter with 1cm mesh size. 3.2mm wire diameter with 1inch mesh size.







Usage: widely used in industry, farming, construction, transportation and mining for protection of structure, roof protection , safety segregation, keeping of poultry , like chicken cage, rabbit cage, and livestock, and decorations etc.
