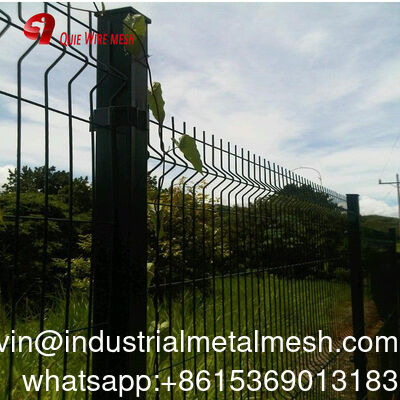

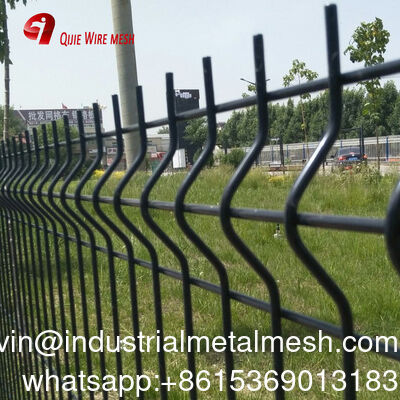

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

Большие изображения :  3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: XMESH
Сертификация: ISO9001:2008, SGS, CE
Номер модели: 46WMP
Оплата и доставка Условия:
Количество мин заказа: 100 шт.
Цена: USD6.90-USD45.71
Упаковывая детали: Полиэтиленовая пленка и деревянный паллет.
Время доставки: 10-25 дней
Условия оплаты: 30% ТТ заранее, остаток перед погрузкой
Поставка способности: 1000 ПК/в день
Подробное описание продукта
Материал: Провод углерода стальной, гальванизированный провод Сетчатое отверстие: 1" x1», 1-1/2 " x1-1/2», 2" x2», 2" x1 " etc.
Диаметр проволоки: 0.4mm до 6.0mm Размер панели: 1.2x2.4M, 1.2x3.0M, ect 1.8x3.6M.
Обработка поверхности: ПВХ покрытие Высота поста: 1.1M-3.0M
Электронная почта: devin@industrialmetalmesh.com WhatsApp: +8615369013183
Выделить:

3D curved wire mesh fence

,

double wire mesh fence with V beams

,

factory perimeter metal fence

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter​



Welded Mesh Fencing is an economical and durable fencing type that suits a wide variety of applications.

The fence panels are typically constructed with rolled top and bottom profiles, which adds strength and durability to the fence panels, without adding additional weight. The design means the panels remain light weight and cost effective, which make weld mesh panels ideal for multiple applications.

Most commonly welded mesh panels are used for boundary fencing and secured compounds due to the added strength of the welded mesh design and heavier wire diameters, making it difficult to cut or damage.

curved mesh fence



3D Curved Fence Panel Specifications
Line wire
xcross wire
Hole Size
Panel Length
Panel
Height
Bending No.
Common Color
Surface treatment
4x4mm
4.5x4mm
4.5x4.5mm
5x4mm
5x5mm
6x5mm
6x6mm
50x100mm
50x200mm
55x200mm
75x150mm
100x300mm
2m
2.2m
2.4m
2.5m
2.8m
3m
830mm
2
Green RAL6005
Grey RAL7016
Brown RAL8019
Black RAL9005
White RAL9010
1.Hot-dipped galvarized after black wire welded

2.PVC coated afteryalvanized wire welded

3.PE coated after glvanized wire welded
1030mm
2
1230mm
2
1530mm
3
1830mm
4
2030mm
4
2230mm
4
2430mm
4
3D Fence Post specifications
Size
Thickness
Panel height
Base post
Normal post
Surface treatment
40x40mm
50x50mm
60x60mm
50x70mm
70x100mm


1.0mm
1.1mm
1.2mm
1.5mm
1.8mm
2mm
2.5mm
830mm
850mm
1200mm
1.Black tube Hot-dipped galvanized

2.Galvanized tube PVC coated
1030mm
1050mm
1400mm
1230mm
1250mm
1600mm
1530mm
1550mm
2000mm
1830mm
/
2400mm
2030mm
/
2500mm
2230mm
/
2800mm
2430mm
/
3000mm



  • Easy Assembly and Eco-Friendly: This fencing panel features a user-friendly design that can be easily assembled, making it a convenient choice for garden owners. Additionally, it is eco-friendly, ensuring a guilt-free installation process.
  • Waterproof and Galvanized for Protection: The product is coated with a waterproof layer and galvanized to provide superior protection against corrosion, guaranteeing a long lifespan and minimal maintenance.
  • Certified Quality and Installation Support: Our PVC-coated 3D V-bending welded wire mesh fence panel meets the ISO 9001:2008 certification standards and comes with a video installation service, ensuring a hassle-free installation process and a high-quality product.



Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.





3D curved PVC coated galvanized welded iron wire mesh fence panel
material steel iron wire,galvanized wire
surface treatment PVC coated ,powder coated
color blue,green,black,white,yellow,grey,etc.
wire diameter 4.5mm,5mm,6mm
hole size 50x200mm,75x200mm
fence height 1.5m,1.6m,1.8m,2m,2.1m
fence length 2m,2.5m
post peach type post,square type post

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter 13D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter 23D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter 3
