Satin Brass Metal Link Spiral 3mm Decorative Wire Mesh Panels Net For Curtain
Product Details
The spiral decorative net is woven with high-quality carbon steel wire, copper wire, stainless steel wire, etc. The finished product of the spiral decorative mesh can be the original color of the metal, such as stainless steel, brass, copper. and can also be sprayed into bronze, gold, brown, red and other colors. The product is more gorgeous with the illumination of the light. It is an ideal decorative material for modern hotels, restaurants, exhibition halls and clubs.
Usage:Widely used as curtain,screens for dining hall, isolation in the hotels,ceiling decoration,etc.
Material:stainless steel ,aluminum,copper,brass,etc.
Width: Max 4m
Color: bronze, gold, brown,red, brass,white silver,etc
|
Norminal Mesh
Thickness(mm)
|
Sprial Pitch (mm)
|
Sprial Wire Dia(mm)
|
Rod Wire Pitch (mm)
|
Rod Wire Dia(mm)
|
| 7.7 |
16.94 |
1.63 |
19.05 |
1.63 |
| 8.9 |
16.94 |
2.03 |
19.05 |
2.03 |
| 7.3 |
10.16 |
1.42 |
12.70 |
1.42 |
| 6.7 |
10.16 |
1.63 |
12.70 |
1.63 |
| 6.0 |
7.26 |
1.22 |
8.47 |
1.22 |
| 6.0 |
7.26 |
1.42 |
8.47 |
1.42 |
| 6.4 |
7.26 |
1.63 |
8.47 |
1.63 |
| 6.1 |
6.35 |
1.42 |
6.35 |
1.42 |
| 6.4 |
6.35 |
1.63 |
6.36 |
1.63 |
| 4.0 |
5.08 |
0.91 |
6.35 |
1.22 |
| 5.2 |
5.08 |
1.22 |
6.36 |
1.22 |
| 5.6 |
5.08 |
1.22 |
5.08 |
1.22 |
Features:
Metal mesh draperies offering the following features:
Fireproof: This kind of metal mesh cloth is not like the common cotton or polyester cloth, it is nonflammable.
Easy to cleaning: You just use a piece of cotton cloth to wipe it when metal cloth are dirty.
The installation is easy and fast and it has elegant appearance
It reflects the unlimited creativity and artistic feeling
Applications:
Metal mesh curtain is very flexible and roll-able in length, has been widely used in architecture. Such as curtains, space dividers, wall cladding, stage background, ceiling decoration, public architectonic art in shopping mall,Restaurant,hall,Commercial office,Hotel,Bar,Resting room,Exhibition and etc.
Typical specification of Woven Drapery Metal Wire Architectural Decorative Mesh
|
Number
|
Cable dia.
|
Cable pitch
|
Rod dia.
|
Rod
pitch
|
Percentage
|
Thickness
|
Weight
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
Kg/m2
|
|
1
|
1×1.80
|
4.0
|
1.5
|
5.5
|
40.0%
|
5.1
|
7.74
|
|
2
|
1×2.50
|
6.0
|
2.0
|
8.0
|
43.0%
|
5.5
|
7.87
|
|
3
|
2×2.75
|
40.0
|
4.0
|
14.5
|
62.0%
|
9.5
|
9.41
|
|
4
|
3×0.50
|
35.0
|
0.5
|
1.4
|
37.2%
|
1.3
|
2.40
|
|
5
|
3×1.60
|
80.0
|
2.5
|
10.0
|
71.0%
|
5.7
|
4.58
|
|
6
|
3×2.00
|
80.0
|
3.0
|
10.0
|
65.0%
|
7.0
|
6.67
|
|
7
|
3×2.75
|
110.0
|
4.0
|
14.5
|
65.9%
|
10.0
|
8.50
|
|
8
|
3×3.00
|
110.0
|
4.0
|
14.2
|
67.0%
|
10.0
|
8.60
|
|
9
|
4×0.75
|
26.4
|
1.5
|
3.0
|
44.3%
|
3.0
|
5.20
|
|
10
|
4×1.00
|
36.0
|
2.0
|
6.6
|
62.0%
|
4.0
|
4.55
|
|
11
|
4×2.00
|
50.0
|
3.0
|
6.0
|
40.0%
|
7.0
|
11.20
|
|
12
|
4×2.00
|
50.0
|
3.0
|
6.0
|
42.0%
|
7.0
|
11.80
|
Color available to be ordered: brass, copper, bronze, golden, and stainless steel.

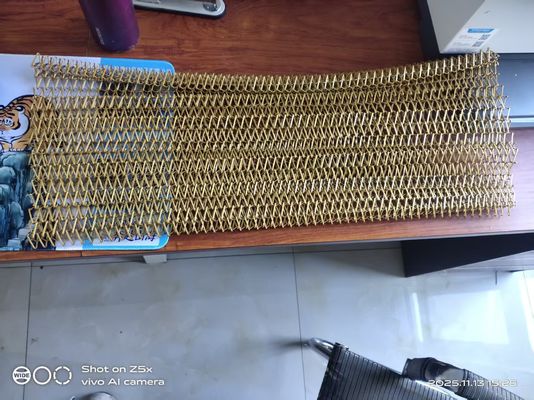

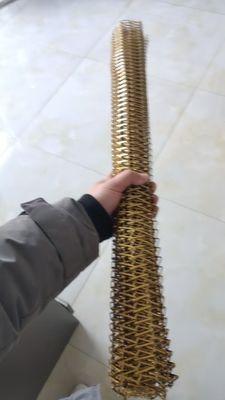

Application Pictures of Woven Drapery Metal Wire Architectural Decorative Mesh
