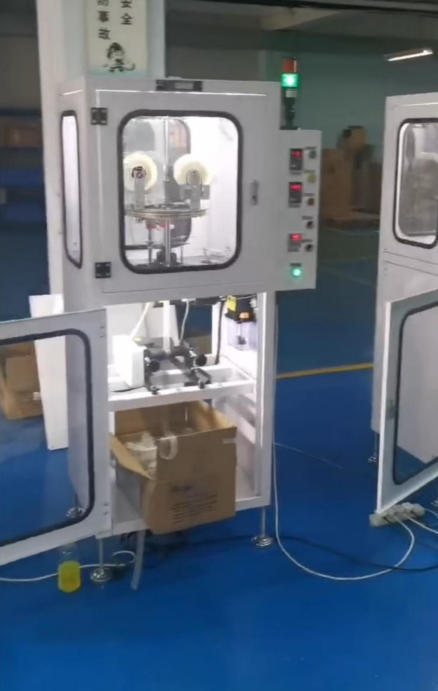

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine
| Model |
YC-100 |
| Needle cylinder diameter |
0.5-34 inches |
| Needles |
6-302 needles |
| Needle cylinder speed |
1500r/min |
| Main motor |
0.37KW-1500kw/220V-240V |
| Curly traction motor power |
60w |
| Main drive motor is controlled by frequency converter |
0-750 r/min |
| Curly traction motor is controlled by frequency converter |
0-75 r/min |
| Machine capacity |
6m/h |
| Machine size |
60*100*110cm |
| Net Weight |
110kg |

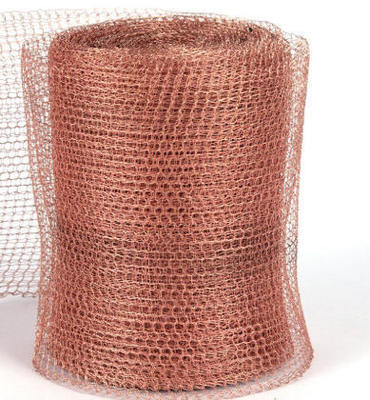

For strict demands on shielding effectiveness and visual transparency in display windows, shielding meshes were developed that display absolutely uniform black coloration and high damping values. An array of wire meshes made of copper or bronze are available for shielding electromagnetic waves in rooms and non-optical systems.
For applications in the field of shielding technology, we produce special meshes for optical applications, wire mesh for installation in composite materials or other material systems, as well as metal meshes for use in the construction industry.
Brass wire: copper 65%,zinc35%
Purple copper wire: copper 99.8%
Phosphorus copper wire :copper 85%-90%,tin 5%-15%
| Product Features |
| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
|
Materials are available intin-plated phosphor
bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/ Brass), Monel, and aluminum(Al).
|
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
|
Hollow Round with Fin Type
|
| |
Mesh/inch |
Wire dia(mm/inch) |
Aperture(mm) |
|
Stainless steel wire mesh
|
100 |
0.089/0.0035 |
0.17 |
| 110 |
0.1060/0.0040 |
0.1295 |
| 120 |
0.0904/0.0037 |
0.1168 |
| 150 |
0.0660/0.0026 |
0.1041 |
| 160 |
0.0635/0.0025 |
0.0965 |
| 180 |
0.0584/0.0023 |
0.0838 |
| 200 |
0.0533/0.0021 |
0.737 |
Production range:
Width: Standard 1M, Special requirement is accepted.
Length:30M/roll
Size:Standard 60/100/150 mesh/inch
Faraday cage shielding stainless steel wire mesh Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel wire mesh
Packaging & Shipping
Packaging:
1. Wrapped With Plastic Film Inside and outside with the woven bag.
2. Wrapped With Plastic Film Inside and outside with the hessian bag.
3. according to your requirements.
Shipping:
Samples will be shipped by express service - DHL, EMS, UPS, TNT or FedEx.
1, By carrier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;
2, By air to the airport, usual 3-5 days arrives;
3, By sea to the seaport, usual 25-45 days.
Our Services
Price : we have a reasonable price for the quality of the goods
Lead time: around 15 days/ 10 tons based on the special situation around the word.
Payment term: Trade assurance Order within Alibaba, T/T, L/C, Credit Card, E-checking, Paypal, Pay in RMB.
Delivery: within the fastest speed of delivery
After-sales services: 1. we support the video online help, 2. Immediately to solve the
problem you have within 24 hours. 3. 24hours online, free taking with 4. our people will go to your place to solve the issues if this necessary, 5, care plus: we can guarantee the goods within certain years, if not we will resend the new one for you no matter how much it is.
For workers: we do have medical insurance and mutual benefits for the workers.
